Configuring VMware Fusion on macOS

On macOS, running Windows as a virtual machine needs some special configuration, especially to integrate it seamlessly into the daily workflow. Once properly set up, accessibility testing on macOS will be as comfortable as it gets.

Installing VMware Fusion

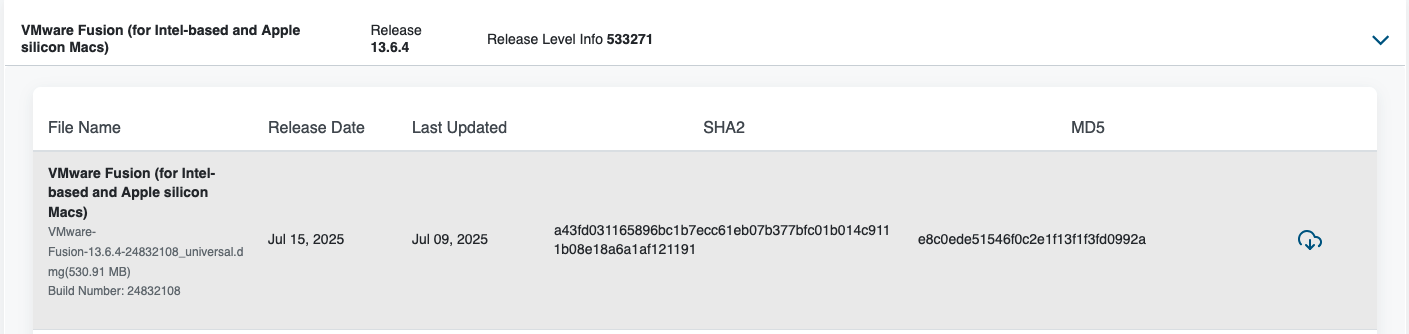

You need to create a free account on Broadcom to download VMware Fusion. After logging in, go to the Sidebar → Click "Free Software Downloads available HERE" → Search for VMware Fusion → Choose version → Accept license agreement → Download

After installing and launching you have the option to choose a previously downloaded Windows ISO image or you may also let VMware Fusion download a Windows for you. We recommend the second option because it is the most straightforward one.

• Choose Get Windows from Microsoft. Then Windows Home. This will download a Windows version for you.
• If for any reason the second option does not work for you, you can download the Windows ISO from the following URL: Windows ISO download.

For both cases go through the default installation process.

Booting up the VM for the first time

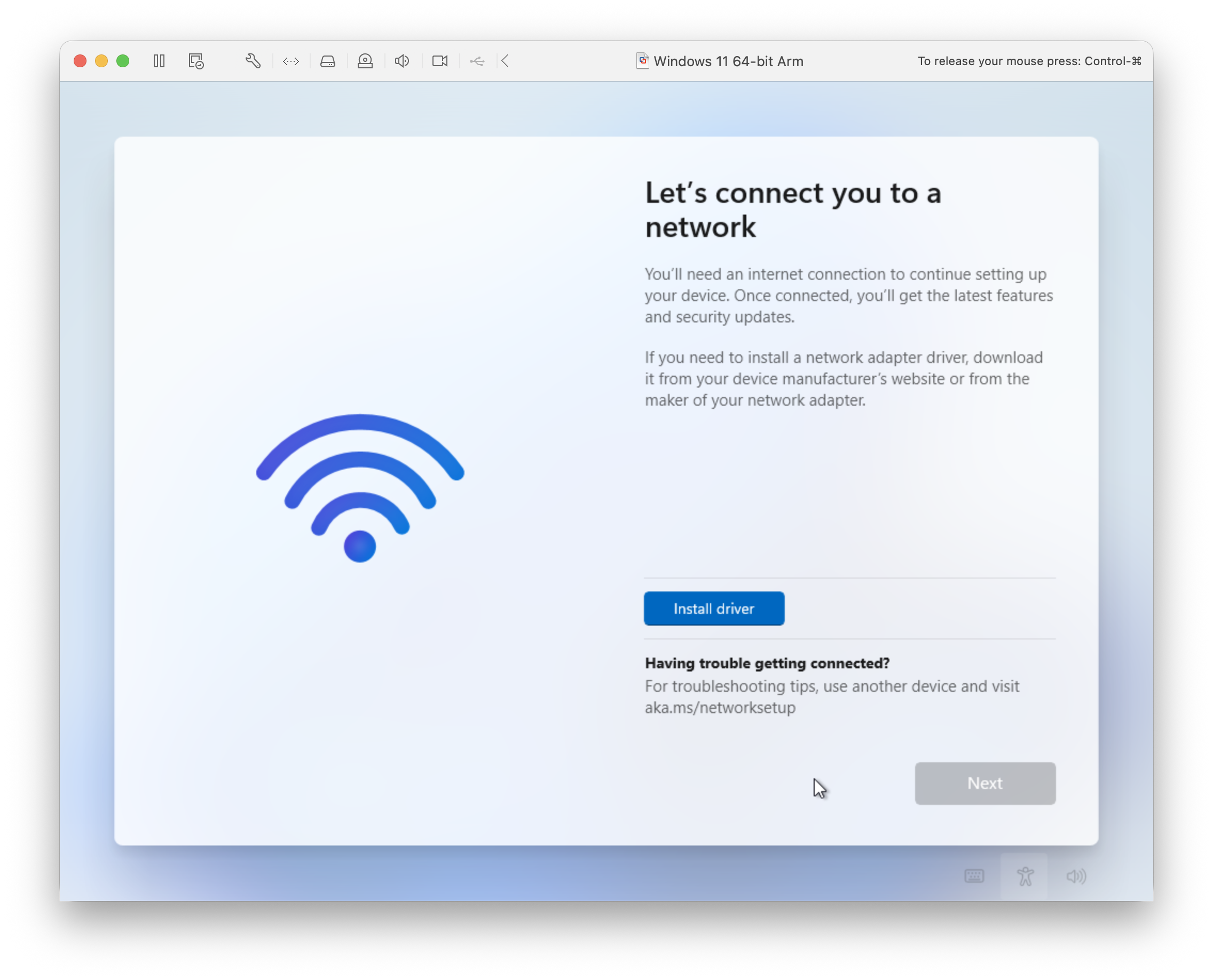

You need to have a Microsoft account. For Windows Home, you can just create an outlook address and log into Windows with that one. You might be prompted to allow internet. For internet access you need to install VMware Tools.

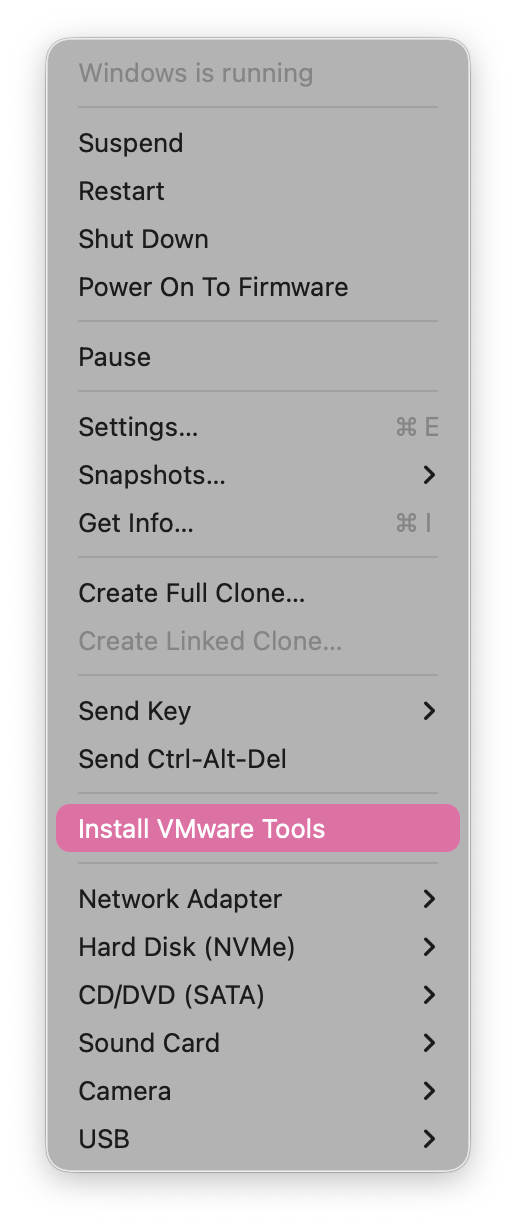

• Go to Virtual Machine → Install VMware Tools in the menu bar of VMware Fusion.

• Click on Install driver in the Windows installation process window.

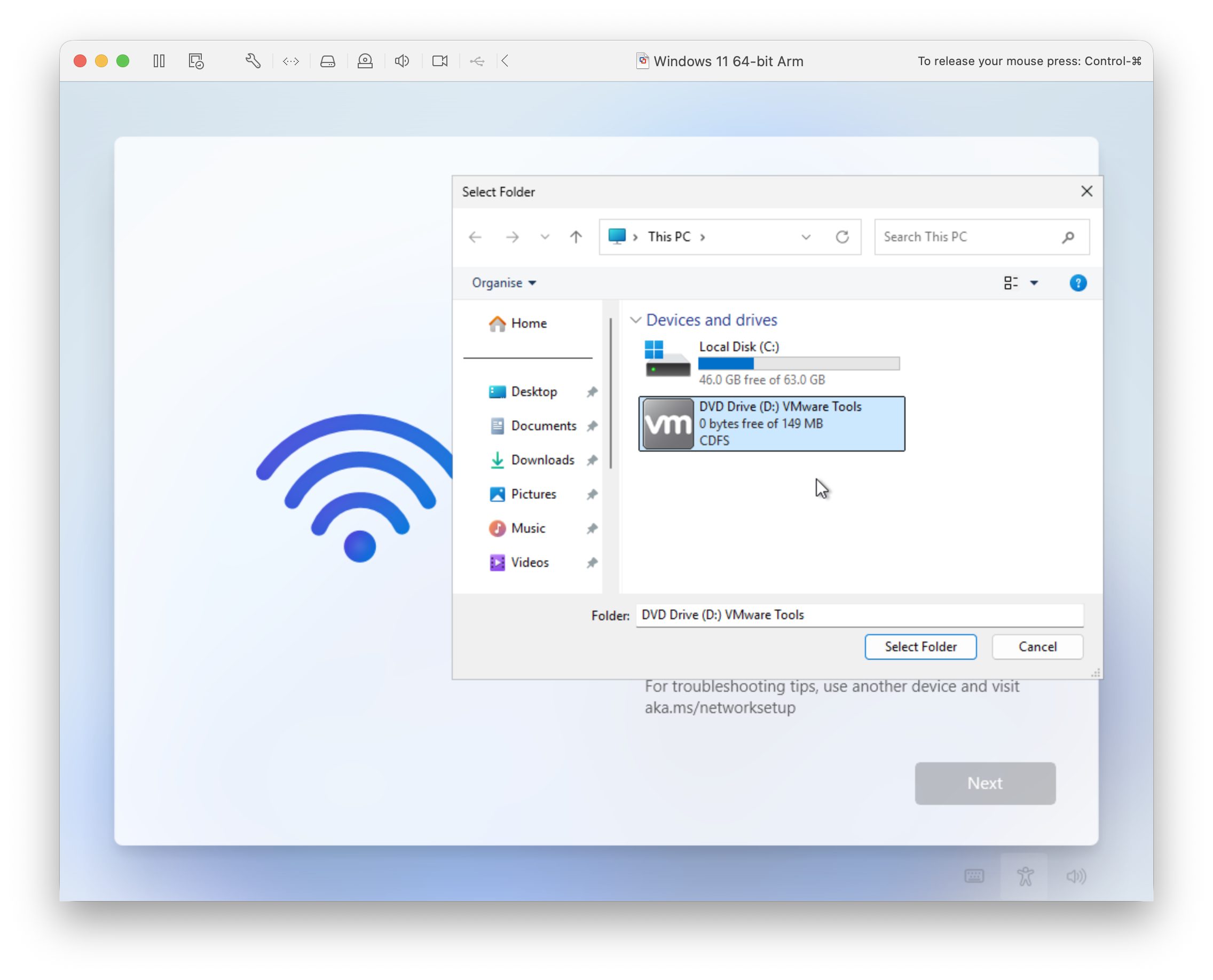

• Browse the newly installed VMware Tools.

Improving seamless integration

To make you feel as comfortable as possible when working with it, we suggest the following additional configuration steps.

Disabling left Windows key

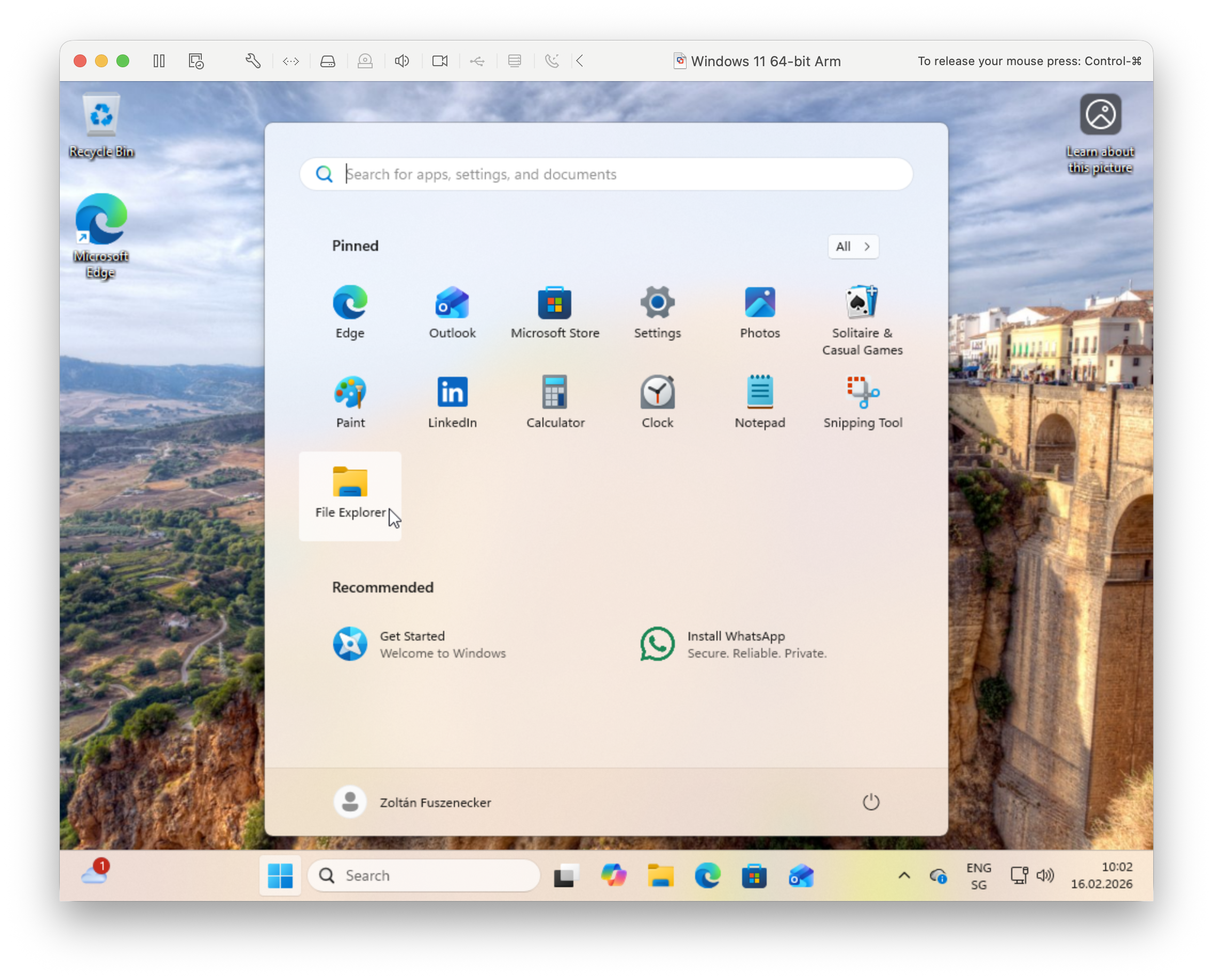

In VMware Fusion, the left Command key by default is assigned to the left Windows key. Pressing Command + Tab therefore often interferes with the left Windows key, opening and closing the "Start" menu of the VM seemingly randomly.

If you want to prevent this:

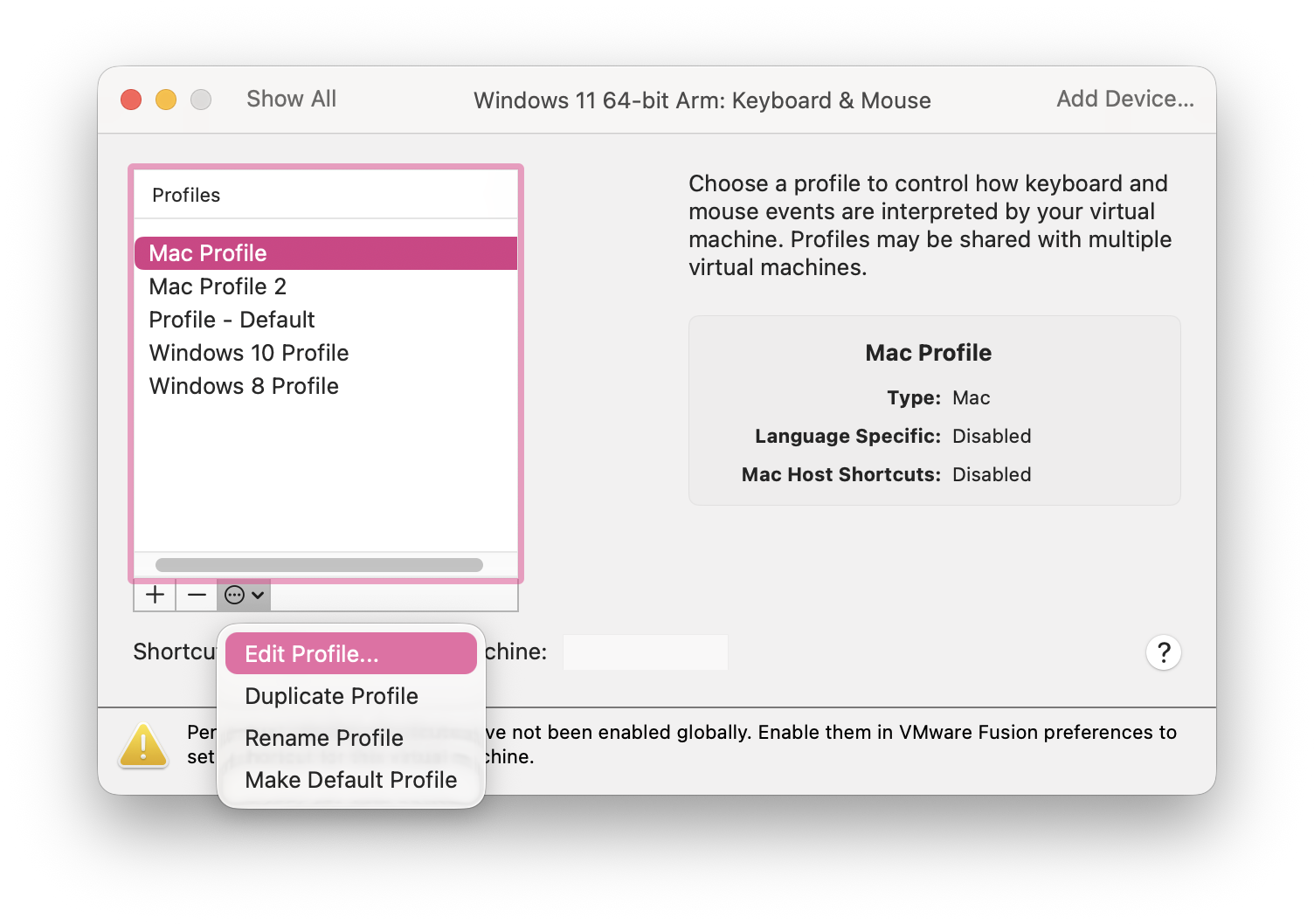

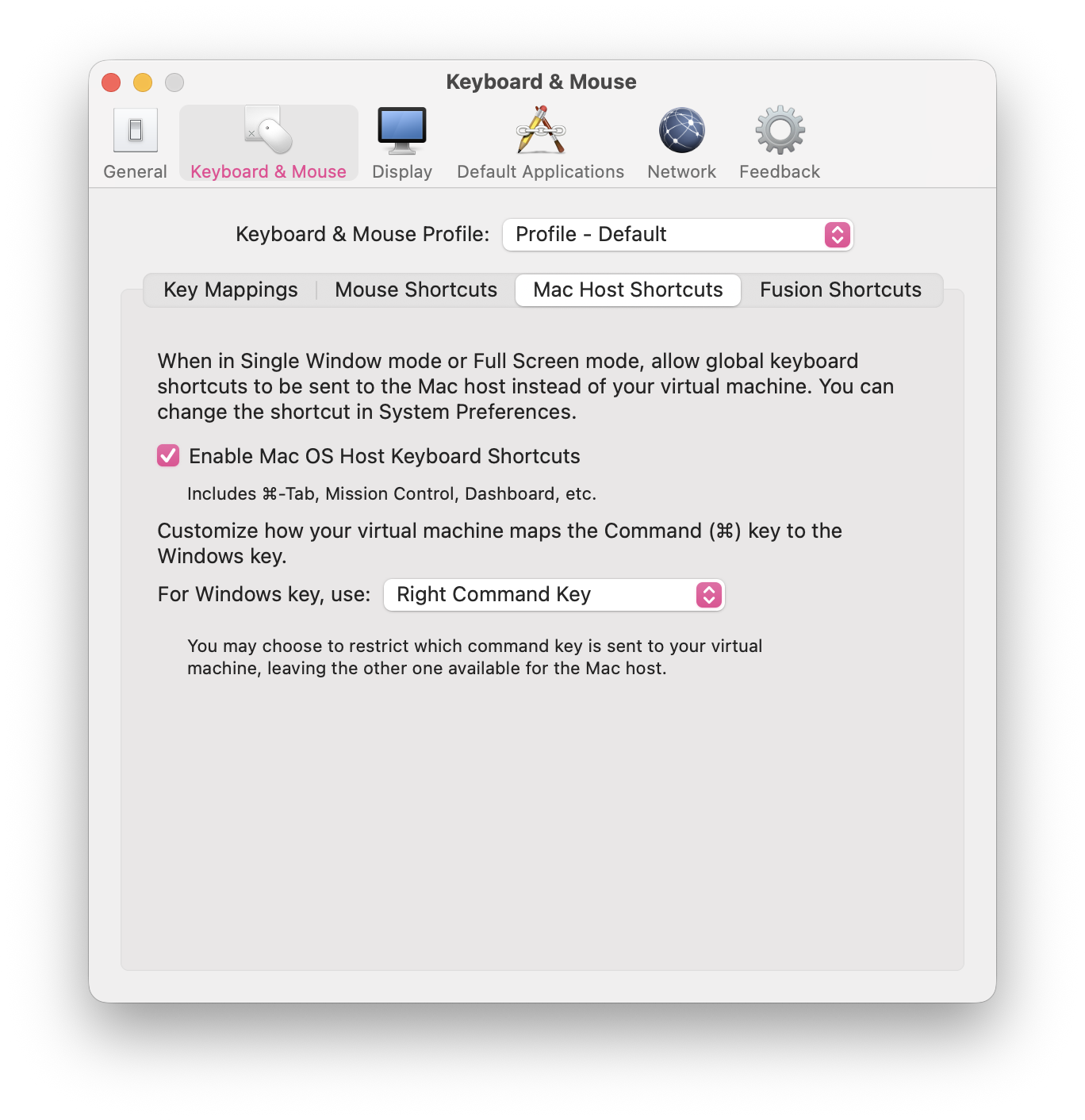

• VMware Fusion → Preferences → Keyboard & Mouse → Edit Profile→ Mac Host Shortcuts.
• There is an option called Enable Mac OS Host Keyboard Shortcuts

This option has two consequences:

1. Command + Tab will work to switch between Mac apps, but not to switch between Windows apps and it won't open the Start menu in Windows either.
2. Windows' Narrator app for accessibility has a default key combination Control + right/left arrow which lets the user tab through each word. This will not work, since macOS will handle this key combination. The default mac behaviour for this key combination is switching between desktops.

You can try to deselect the Mac Host Shortcuts checkbox and use following setting for using Command + Tab in the Macbook. However it is not working always.

• For Windows key, use select Right Command key.

If this setting is working correctly you can use the right Command key to open and close the "Start" menu, while leaving the left Command key for switching between Mac apps.

Changing behaviour of function keys

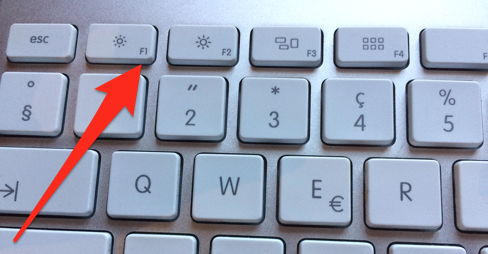

Windows desktop screen readers make use of the function keys (F1 to F12) a lot.

By default, in macOS, you have to press the Fn key in addition to the specific function key to trigger it.

Keyboard shortcuts of desktop screen readers are quite tricky (if you are really curious and want to learn more about this, skip ahead and read The Insert Modifier Key and also Screen Reader Shortcuts). As the function keys are often part of them, we suggest that you change the behaviour of function keys (Apple Support) so you do not have to use the Fn key for them, too.

Emulating the Insert key

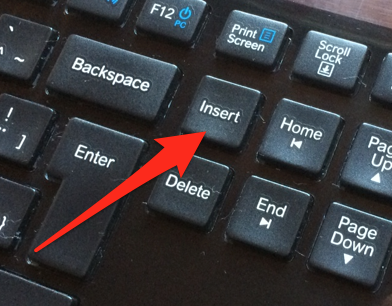

Windows desktop screen readers rely heavily on the Insert key.

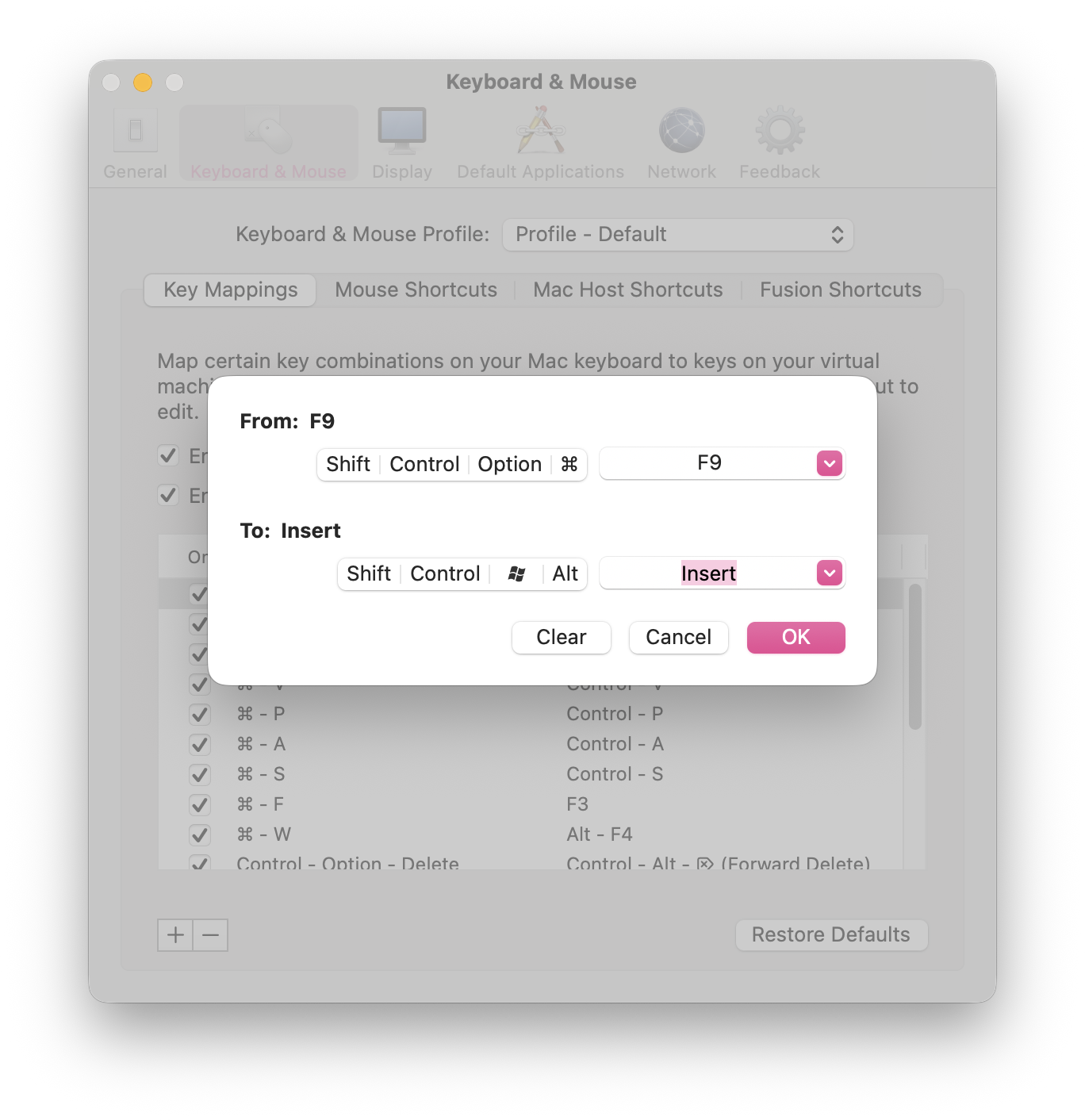

• VMware Fusion → Preferences → Keyboard & Mouse → Edit Profile→ Key Mappings. Here, click the plus and add your mapping.

This key is not available on Macs (in earlier days of macOS, it was the "Help" key), so you will have to emulate it. The most robust way to do this is using the free software Karabiner-Elements which translates any given key to any other in macOS.

• Download Karabiner-Elements and install it.
  • Be sure to allow its execution in the System Preferences' Security & Privacy section.
• After launching it, add a Simple Modification:
  • From right_option to insert.
  • Instead of right_option, you can choose any key you like. Make sure it is one you do not really need in your daily workflow.

Alternatively, you can attach a physical USB num lock keyboard (or any other keyboard offering an Insert key) to your Mac.

Working seamlessly with the VM

We think it's easiest to have VMware running in Single Window mode (default):

• Use Command + Tab to switch between Mac apps.
• Use Option + Tab to switch between Windows apps (when VMware is active).

If you want all Windows apps to be accessible from the Dock (and thus also in the application switcher when pressing Command + Tab), the "Unity" mode is pretty cool, too. Even the Windows' task bar icons will appear in the Mac's menu bar.
